Debugging APFS Unicode Normalization on Linux

An emoji directory that ls could see but nothing could open:

$ ls -lah
total 0
d????????? ? ?  ?     ?            ?  🫣
-rwx------ 1 99 99  11K Oct 18  2025  .DS_Store
drwxr-xr-x 1 99 99 2.1K Aug 25  2025  some-other-dir

Context: encrypted APFS USB stick, no Mac around, mounted on Linux with apfs-fuse. lstat, rsync, tar, Python’s os.lstat, all returned ENOENT on 🫣. The directory was simultaneously there and not there.

Why This Happens

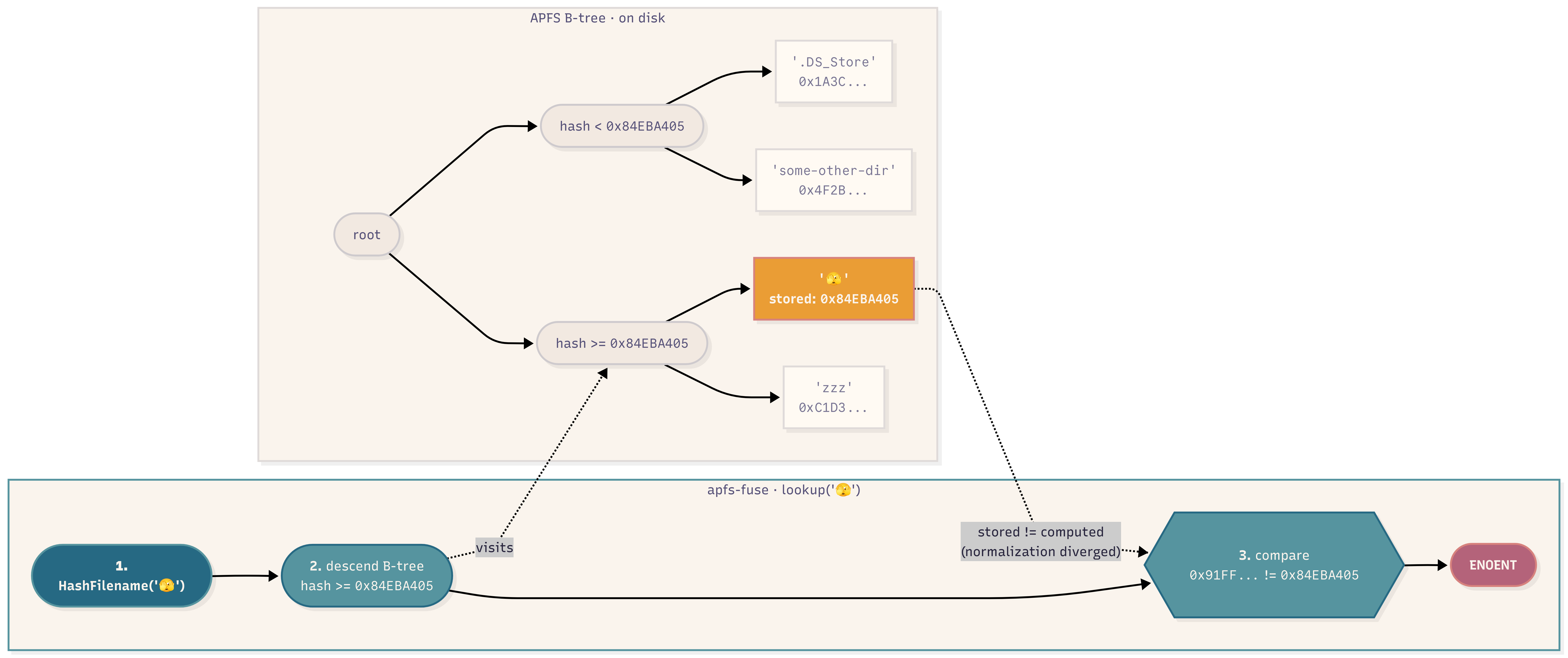

APFS stores directory entries in a B-tree. Each entry’s key contains the parent inode ID, the filename, and a precomputed hash of the filename. That hash exists for fast lookups; instead of scanning every entry, the kernel can jump straight to the right B-tree node.

This creates a split between two operations:

readdir (what ls uses): walks B-tree entries sequentially, no hashing needed
lookup (what happens when you actually access a path): searches by hash

If apfs-fuse computes a different hash than what macOS stored, lookup returns ENOENT even though the entry is sitting right there. readdir still works because it never uses the hash.

Finding the Inode

apfs-dump-quick reads raw APFS structures, bypassing FUSE entirely:

DirRec   A6 84EBA405 '🫣' => D0  [DT_DIR]
Inode    D0 => A6 D0 [TS] 8000 [INODE_NO_RSRC_FORK] 3 0 1C 0 [] 99 99 40755

Inode D0 (208). Contents of that directory:

DirRec   D0 ... 'tapes' => B5  [DT_DIR]
DirRec   D0 ... 'imgs'  => A7  [DT_DIR]

The data is intact and the inodes are valid. The problem is purely in the lookup path.

The Root Cause

The hash is computed on a normalized form of the filename, so the first suspect is Unicode normalization. The same visual character can have multiple valid byte representations, and the Unicode standard defines rules for picking a canonical one.

Take é. You can encode it two ways:

NFC (composed): single codepoint U+00E9, 2 bytes
NFD (decomposed): e (U+0065) followed by a combining acute accent (U+0301), 3 bytes

They render identically but differ byte for byte, so a naive string comparison between them fails. NFC is what the web and Linux mostly use; NFD is what macOS historically used for HFS+.

macOS switched to APFS in 2017 and officially treats filenames as a bag of bytes with no enforced normalization. But the hash used for B-tree lookups is computed on an internally normalized form. The exact normalization APFS uses is a variant of NFD, but with additional rules for things like case folding on case-insensitive volumes.

apfs-fuse’s HashFilename() is reverse-engineered from the APFS spec and binary analysis. It handles the common cases correctly, but gets it wrong for some codepoints, particularly newer emoji. Emoji above a certain Unicode version weren’t around when most of the reverse-engineering happened, so they fall through edge cases in the hash function.

For 🫣 specifically (U+1FAE3, added in Unicode 14.0), it has no decomposition, so NFD and NFC are identical. The mismatch here is more likely a bug in how HashFilename() handles codepoints in that range than a normalization issue strictly speaking. Either way, the result is the same:

stored   (macOS):     0x84EBA405
computed (apfs-fuse): 0x91FF...

Wrong hash, missed B-tree lookup, ENOENT.

The Fix

In LookupName inside ApfsLib/ApfsDir.cpp, the B-tree lookup failure path used to just return false. Fall back to a linear scan instead:

 if (!rc)
 {
     if (g_debug & Dbg_Dir)
-        std::cout << "Lookup failed!" << std::endl;
+        std::cout << "Lookup failed! Trying linear scan..." << std::endl;
+
+    std::vector<DirRec> entries;
+    if (ListDirectory(entries, parent_id))
+    {
+        for (const auto &de : entries)
+        {
+            if (de.name == name)
+            {
+                res = de;
+                return true;
+            }
+        }
+    }
     return false;
 }

ListDirectory uses the sequential iterator, same path as readdir. It’s $O(n)$ instead of $O(\log n)$, but it only runs after the hash lookup has failed, so successful lookups are untouched.

After rebuilding and remounting, the directory was fully accessible.

Upstreamed as apfs-fuse#218.
